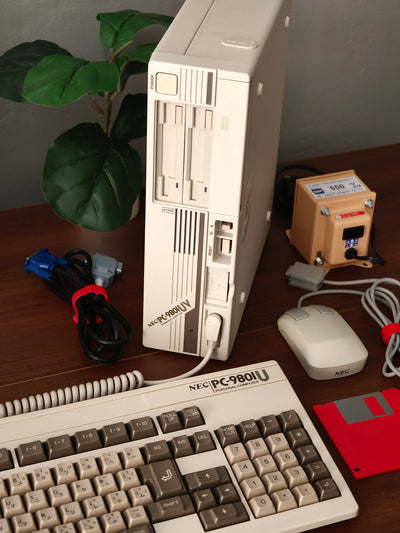

Includes:

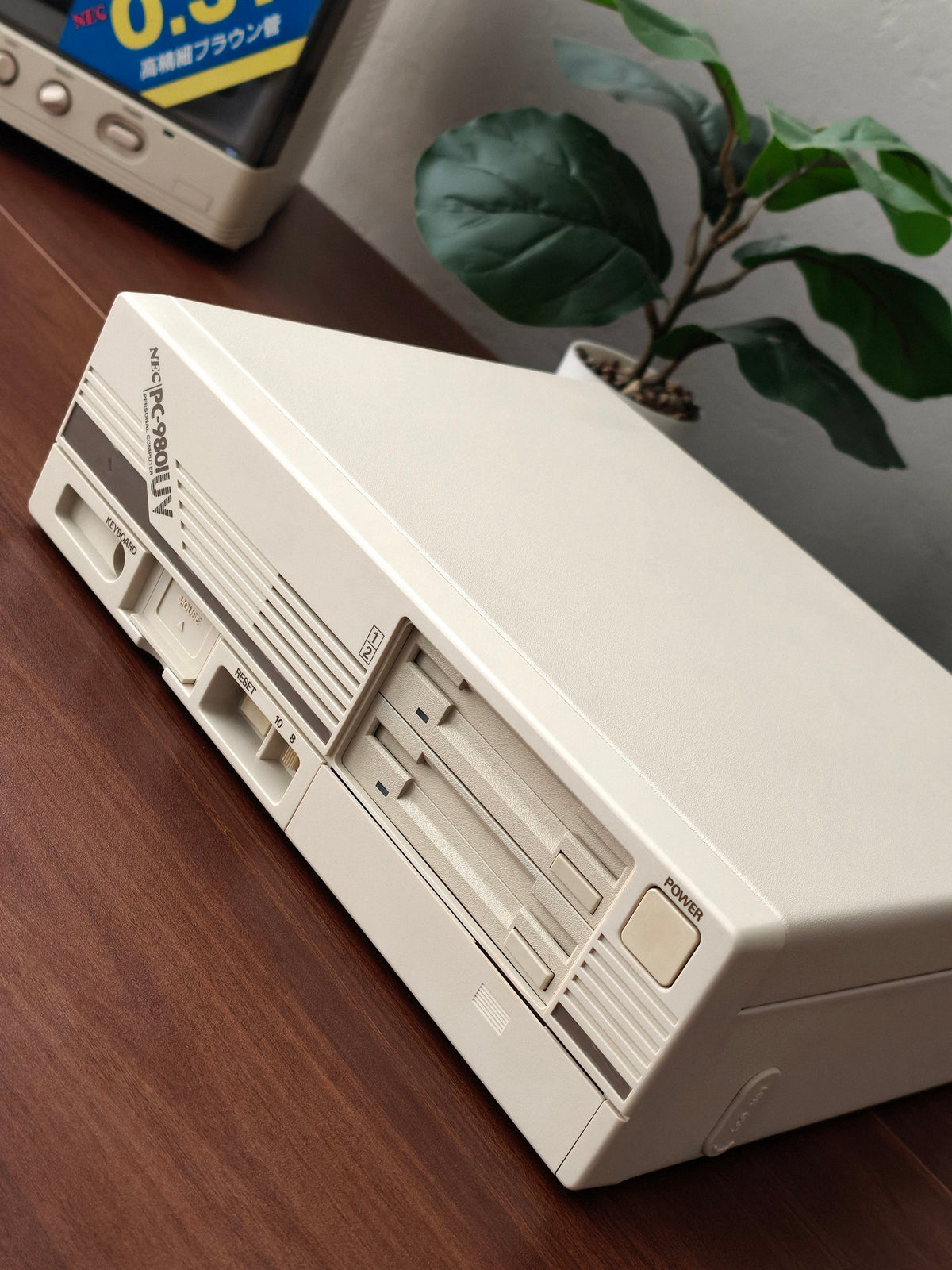

- NEC PC-9801UV11 main unit

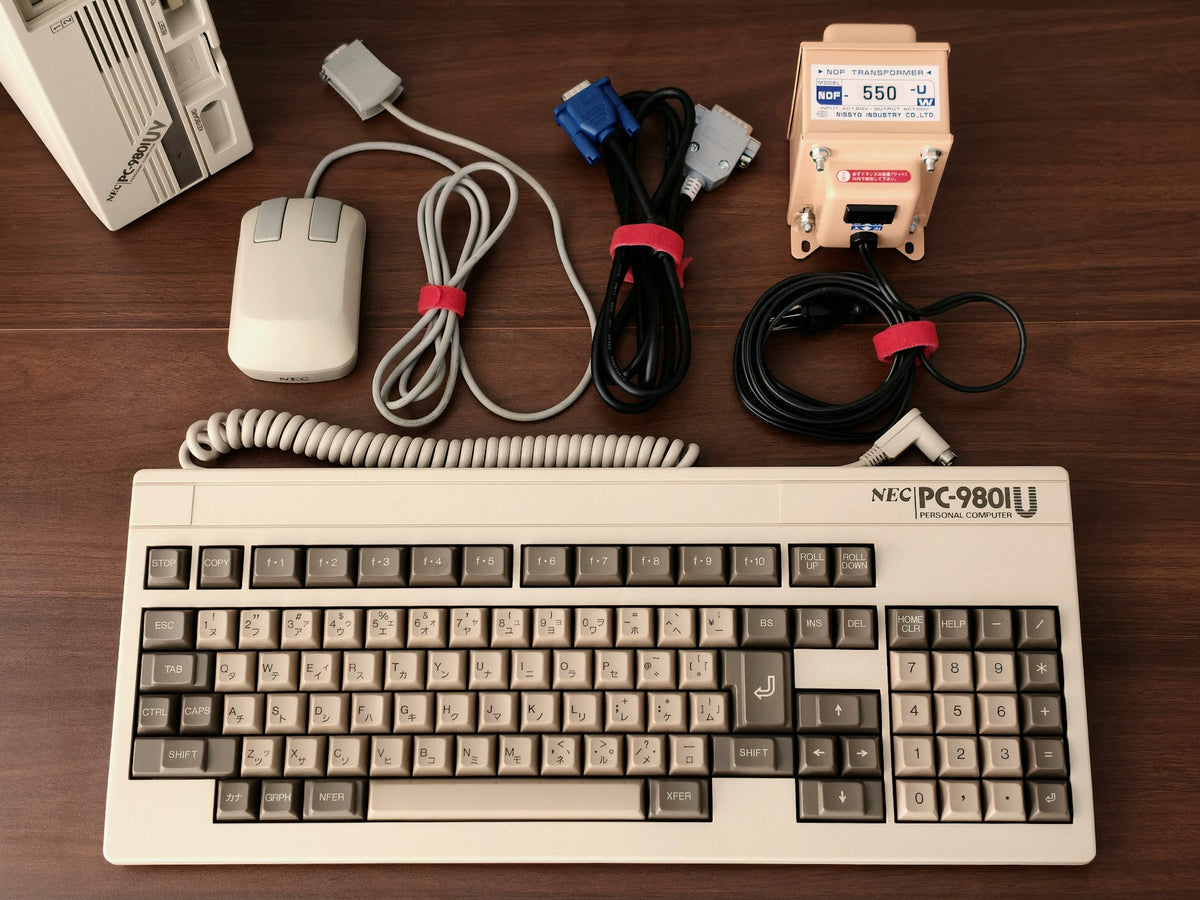

- OEM NEC PC-9801 "U" keyboard
- OEM NEC PC-98 Bus Mouse

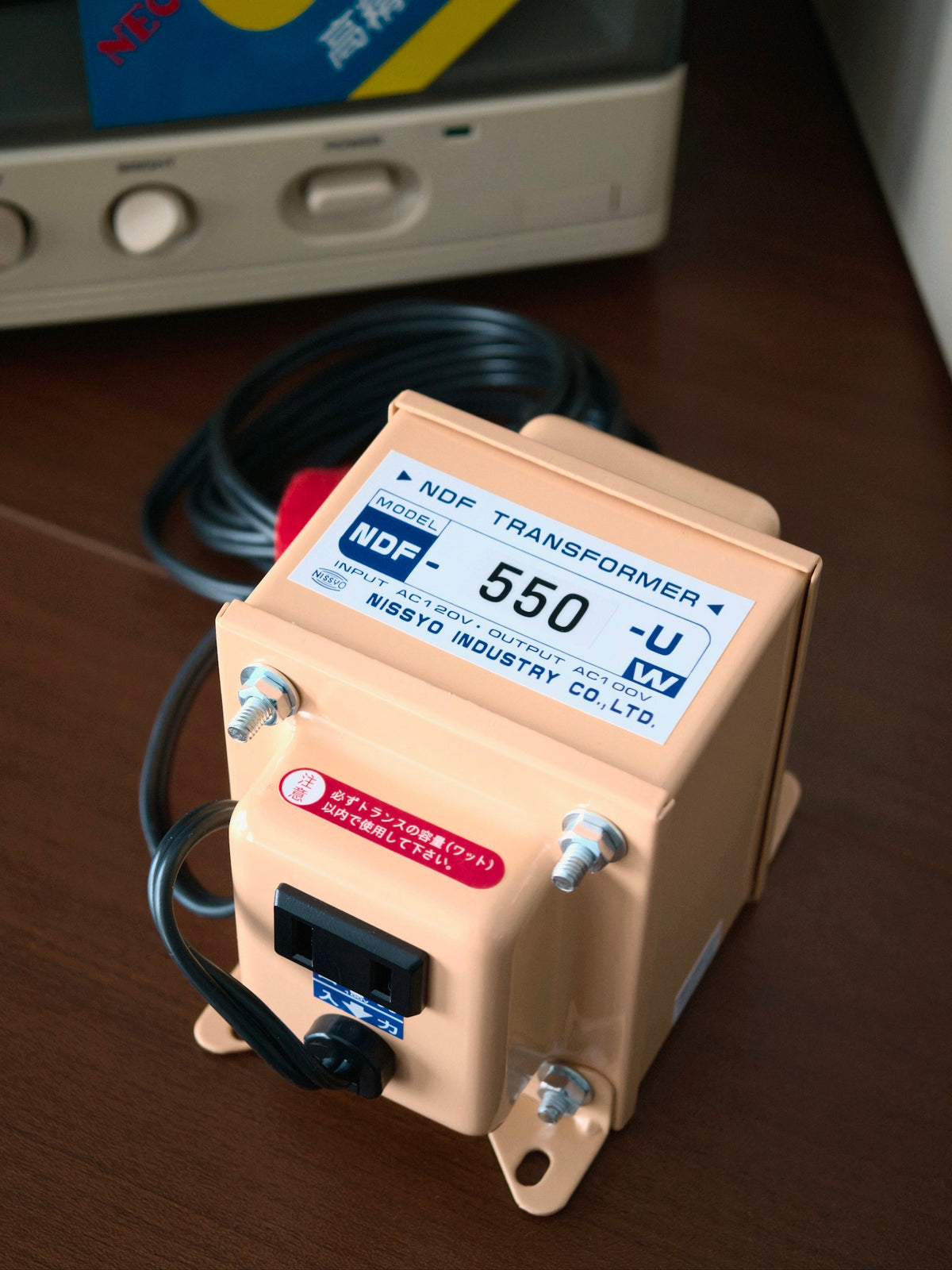

- New 550W Nissyo transformer with 100V output verified

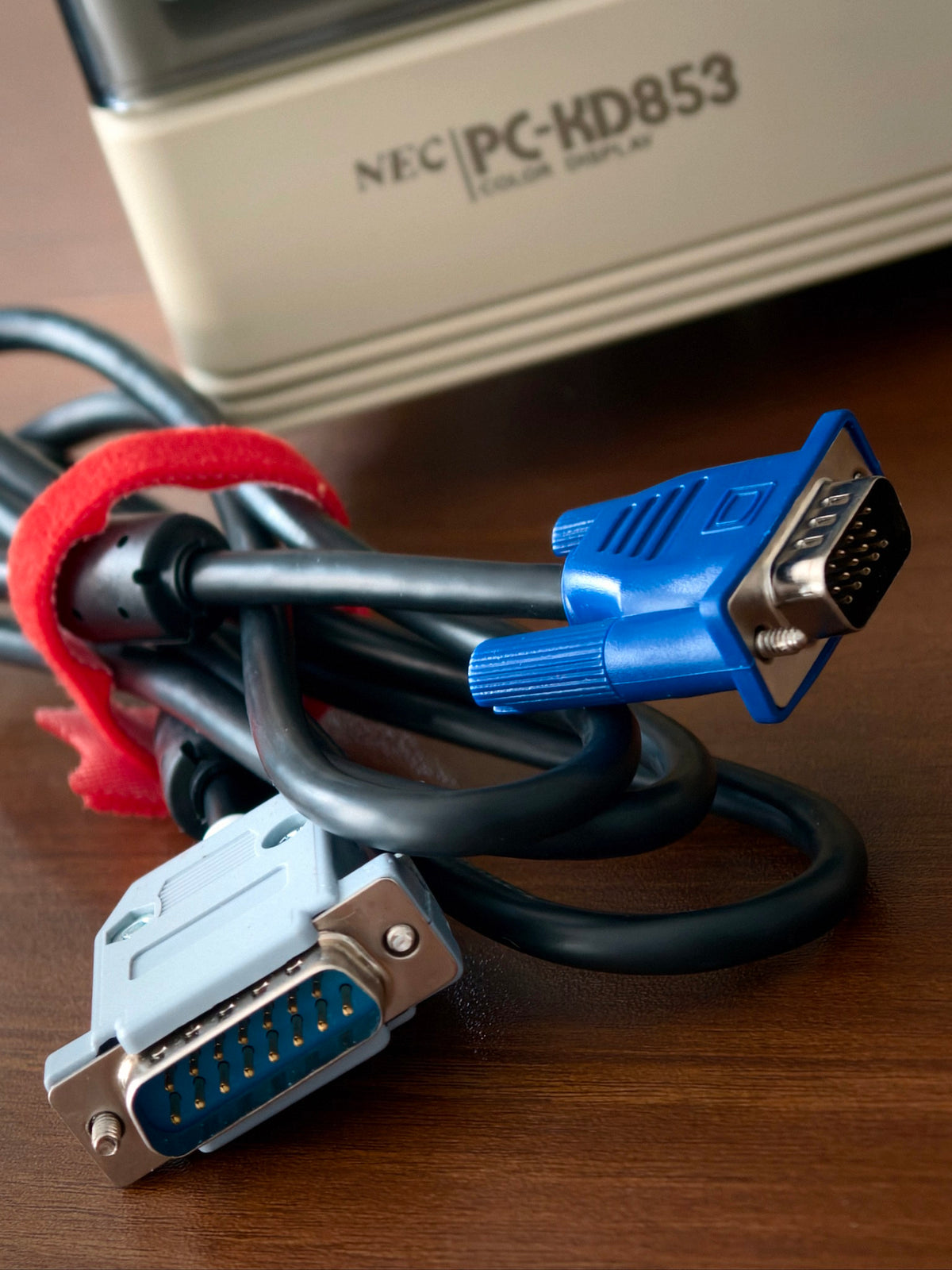

- Analog RGB to VGA passive cable (Requires 24kHz-compatible multisync monitor or Open Source Scan Converter)

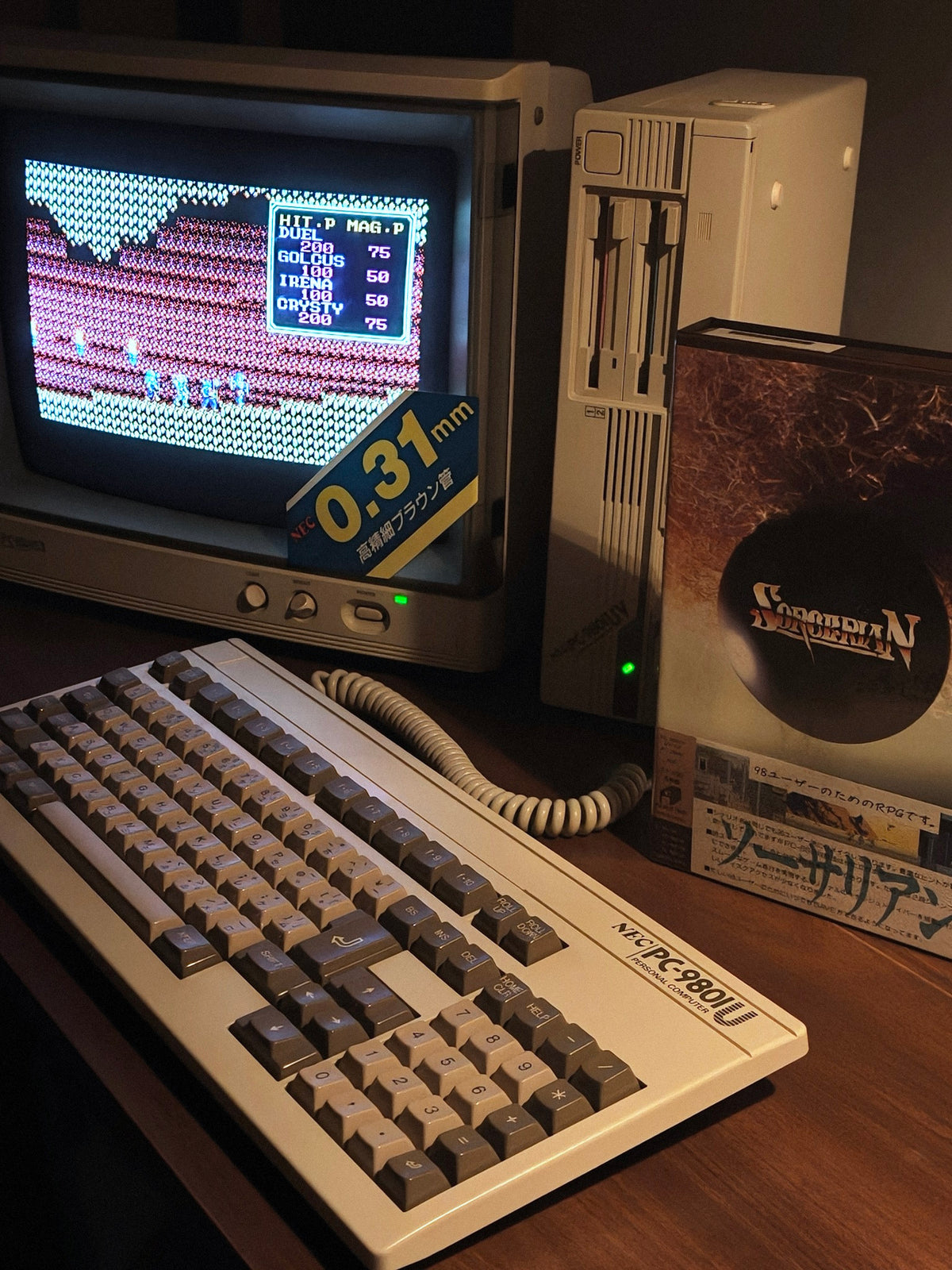

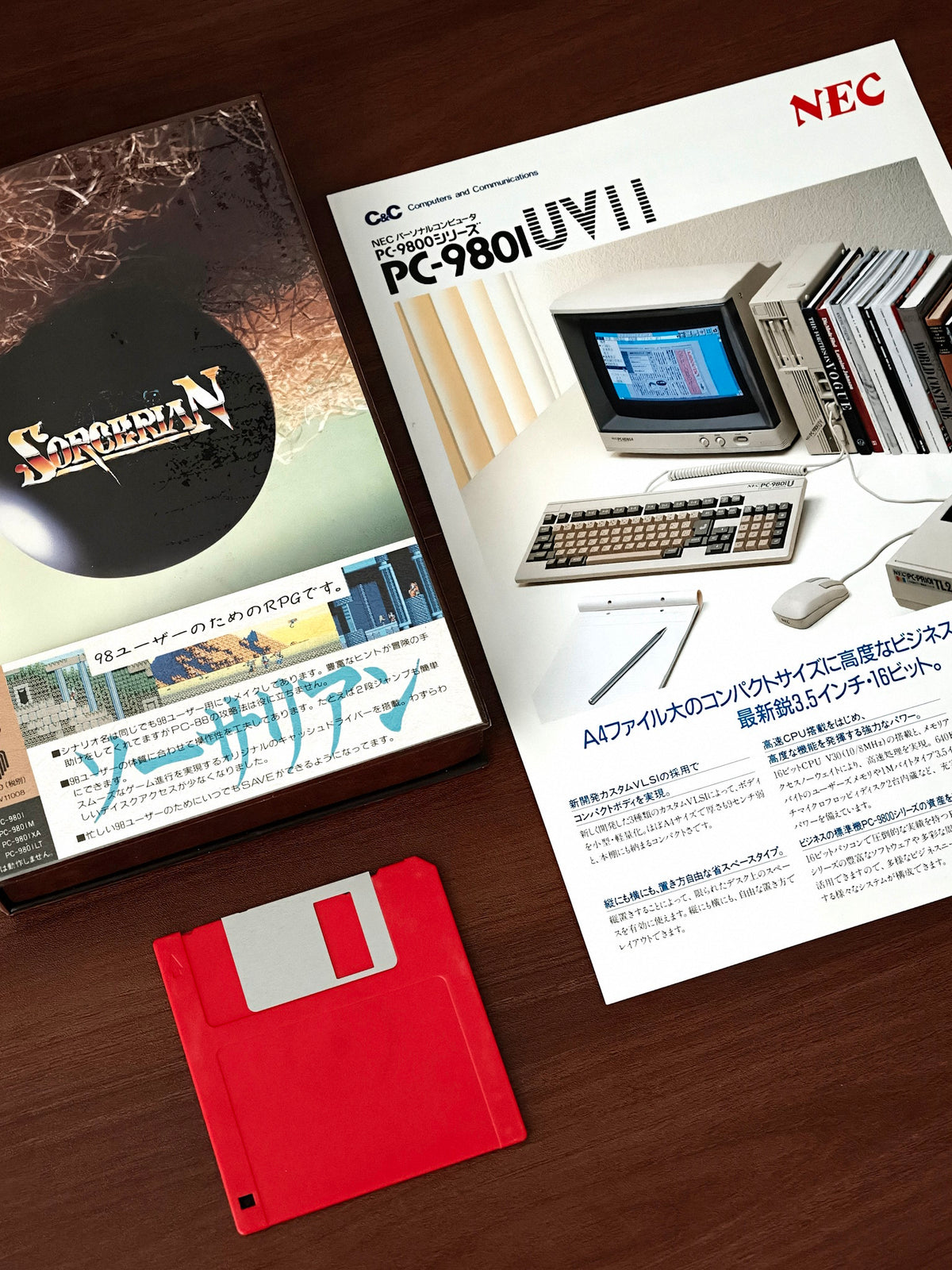

- Original boxed game: Sorcerian (1987) with 5x 3.5" disks (Program Disk, User Disk, Scenario 1, Scenario 2, Scenario 3), manual, quick start guide, and registration card

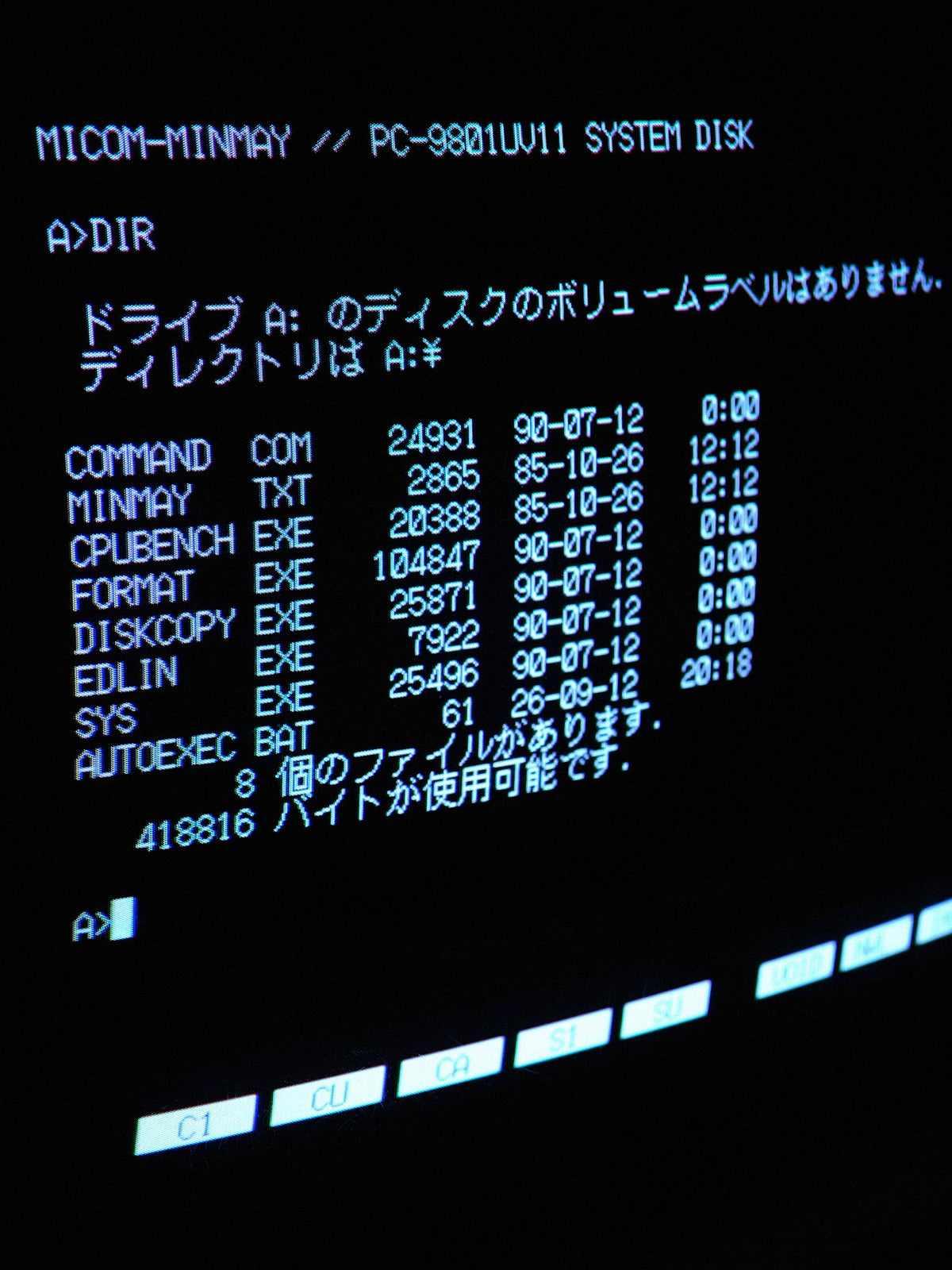

- Custom lightweight MS-DOS 3.3 system disk with a MINMAY.TXT UV11 Quick Start Guide, CPUBENCH, FORMAT, DISKCOPY, SYS, and EDLIN

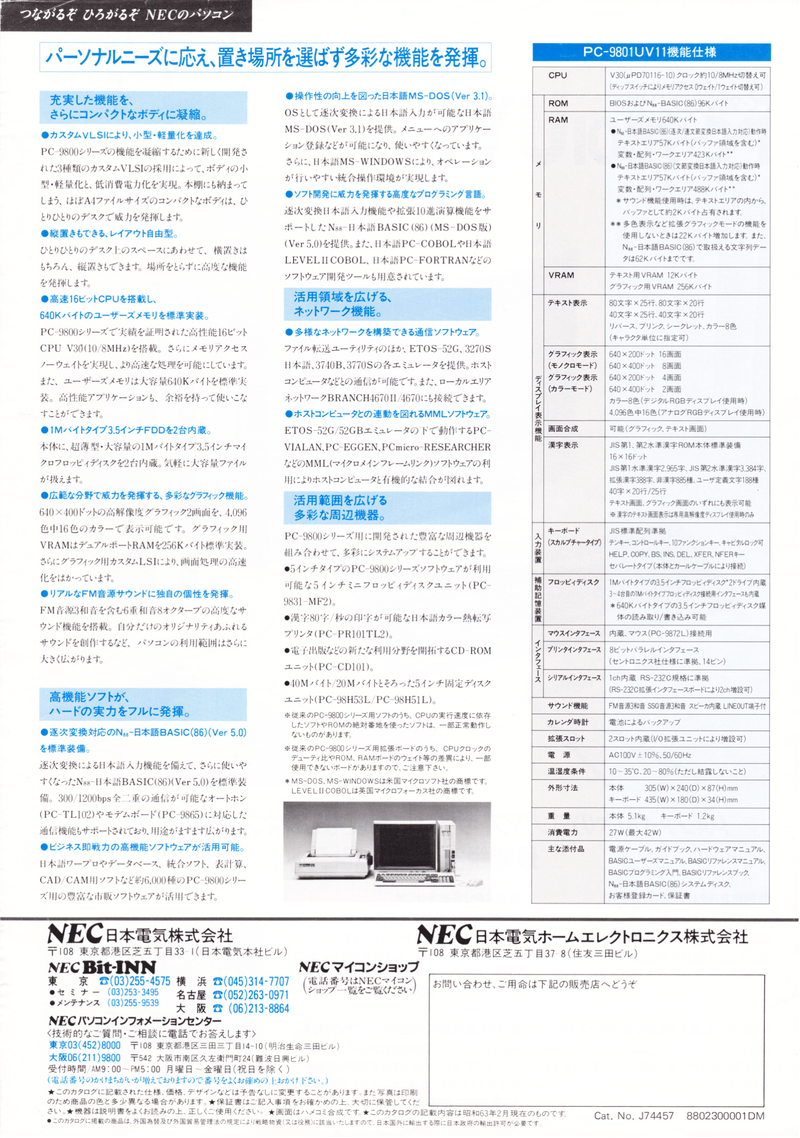

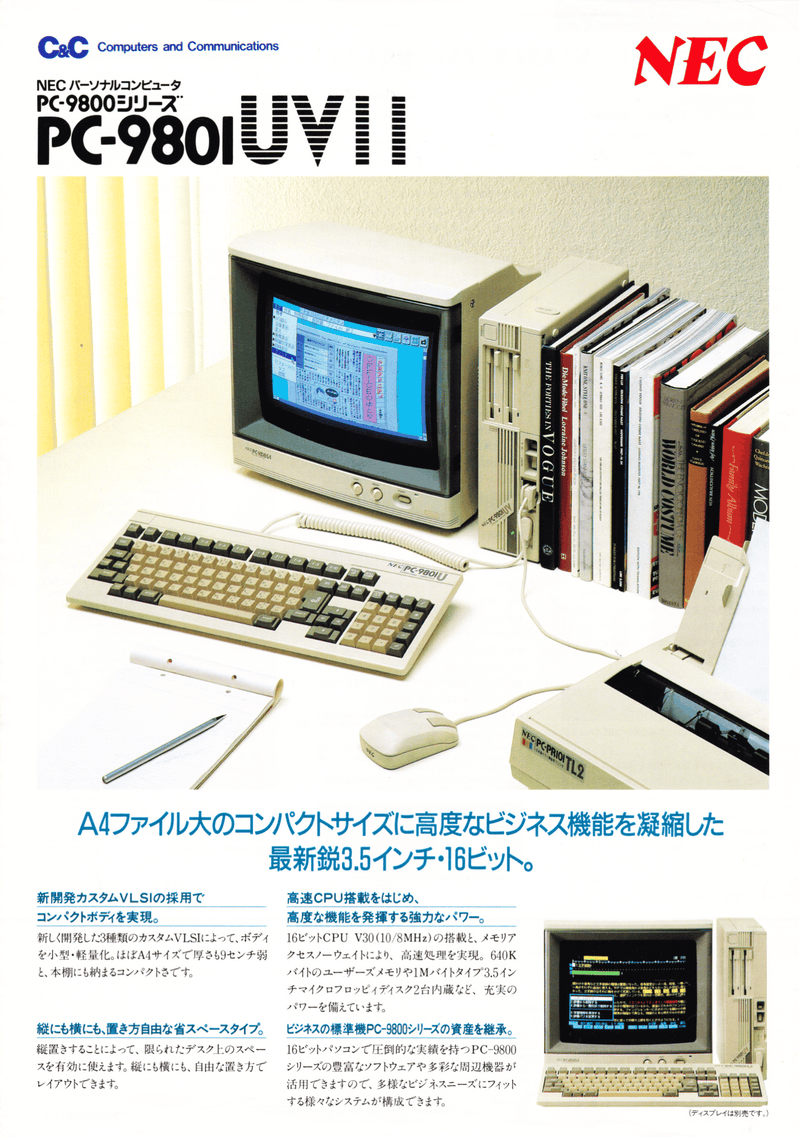

- Reprint of PC-9801UV11 marketing flyer
Servicing & Repair Notes:

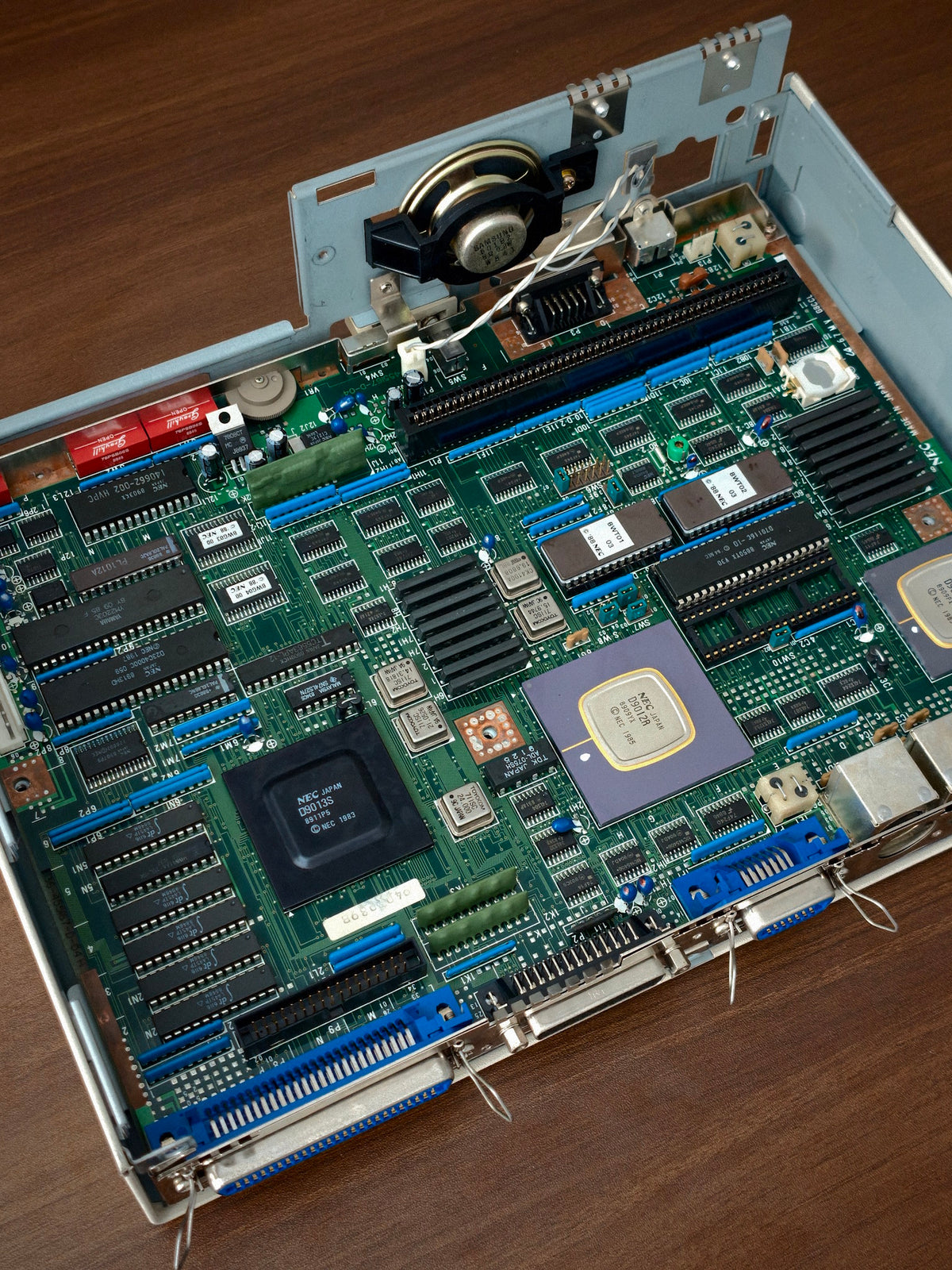

- Mainboard capacitors replaced with Nichicon

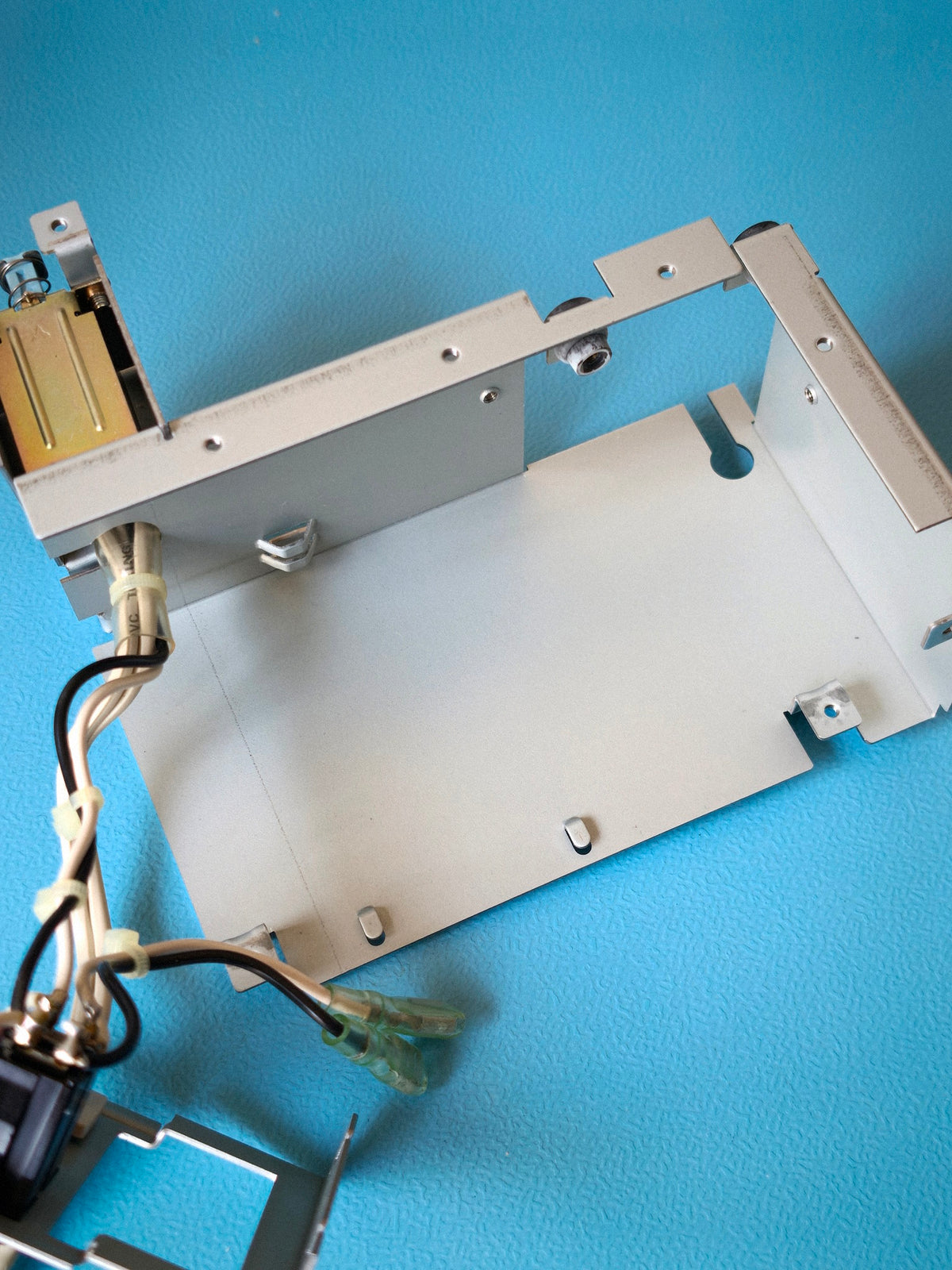

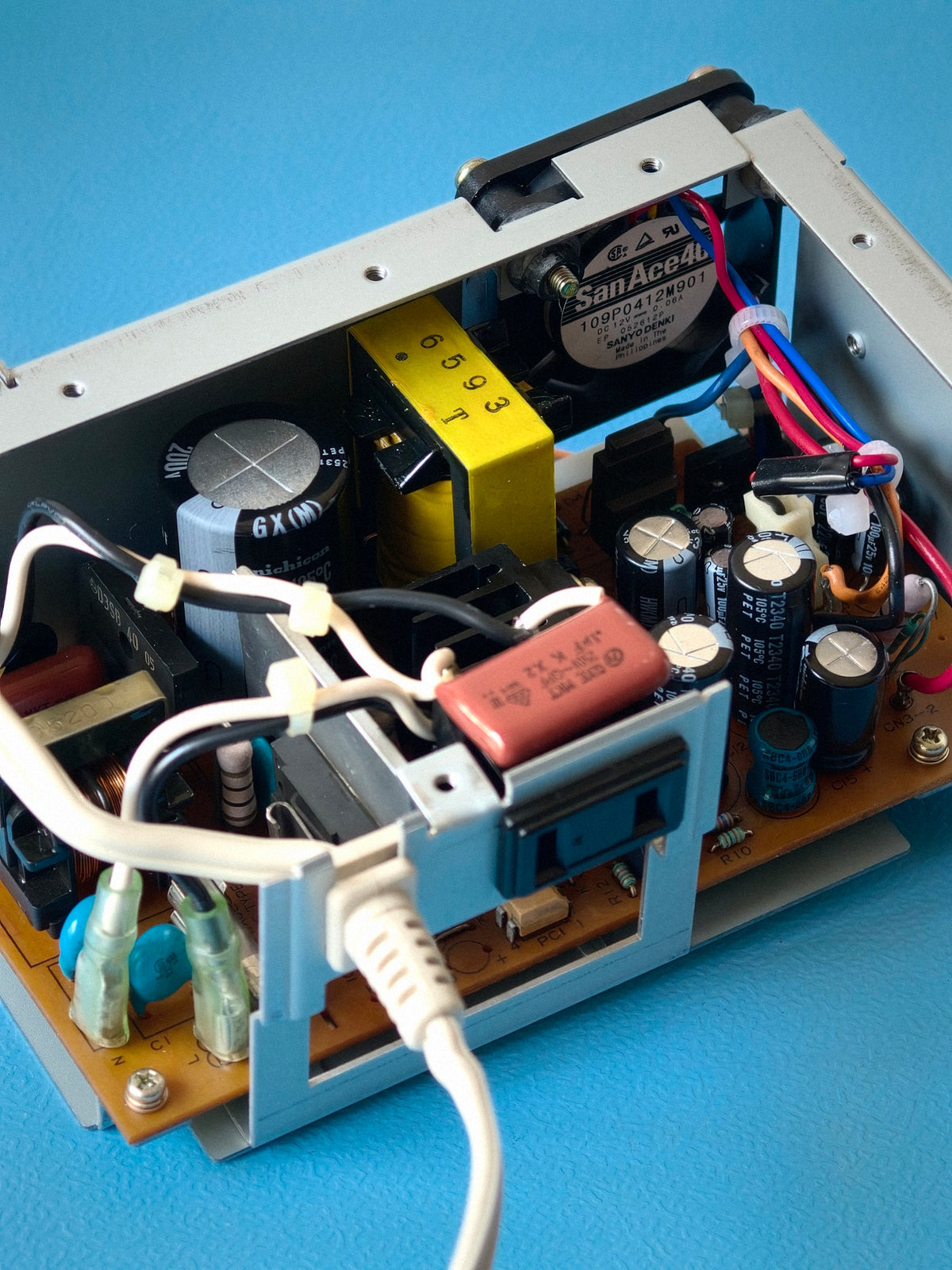

- PSU capacitors replaced with Nichicon and Rubycon
- PSU fan replaced with a Sanyo Denki San Ace 40

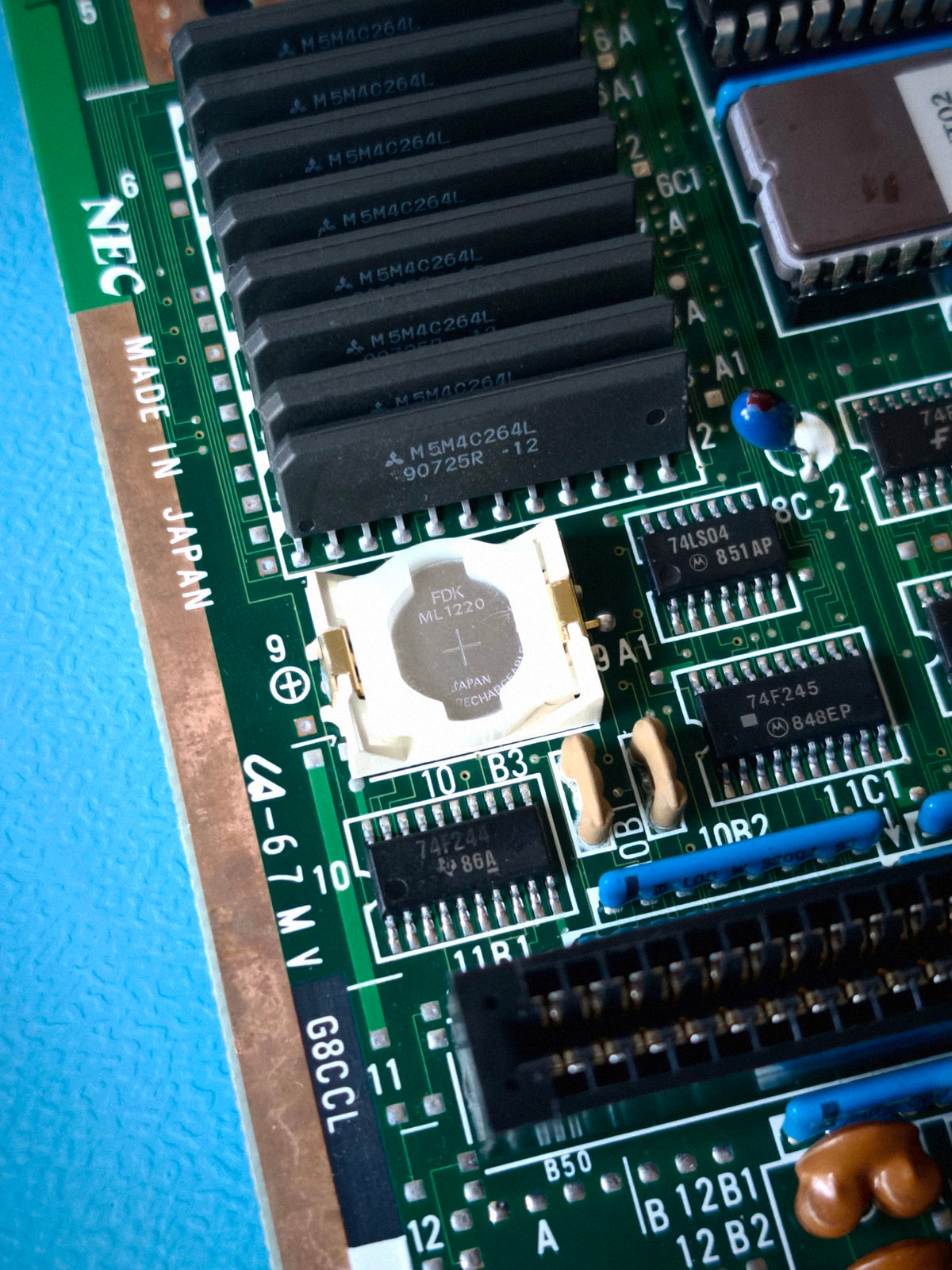

- Battery holder added with rechargeable FDK ML1220 coin cell. Verified time being held in N88-BASIC

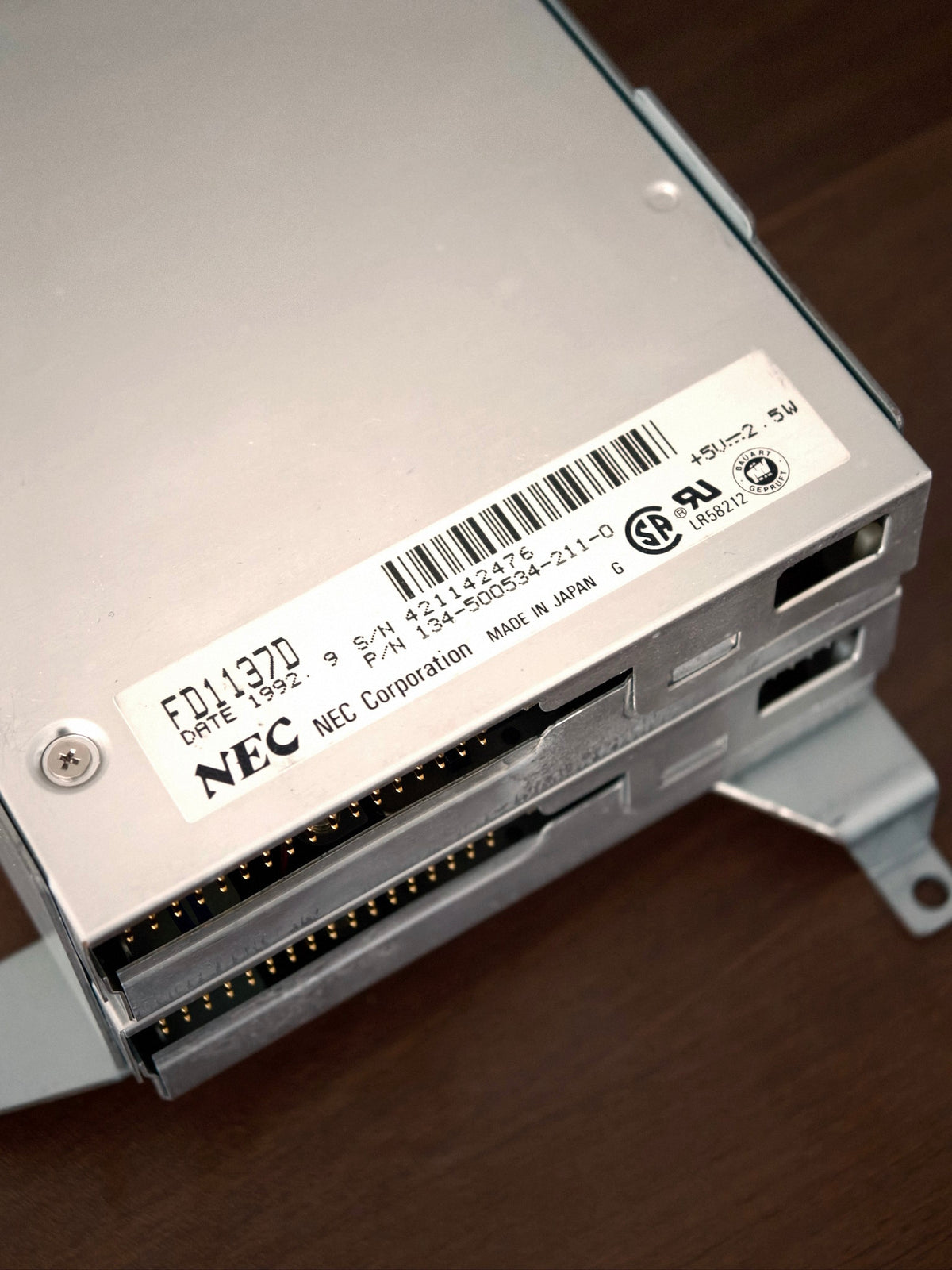

- FD1137D floppy drives replaced with matching units from 1992. The drives have been verified as fully functional (Drive 2 was used to create the included custom system disk from a master in Drive 1)

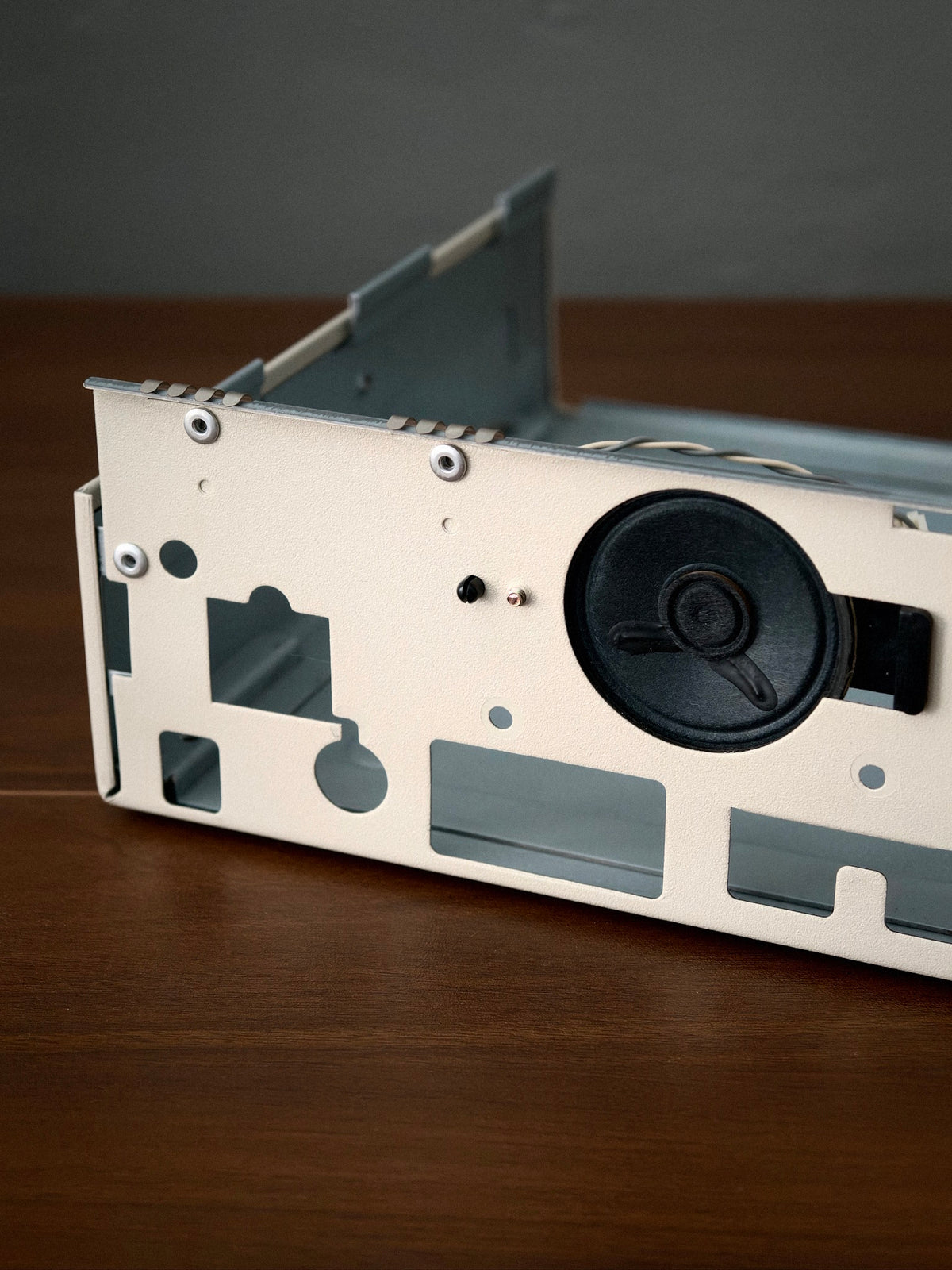

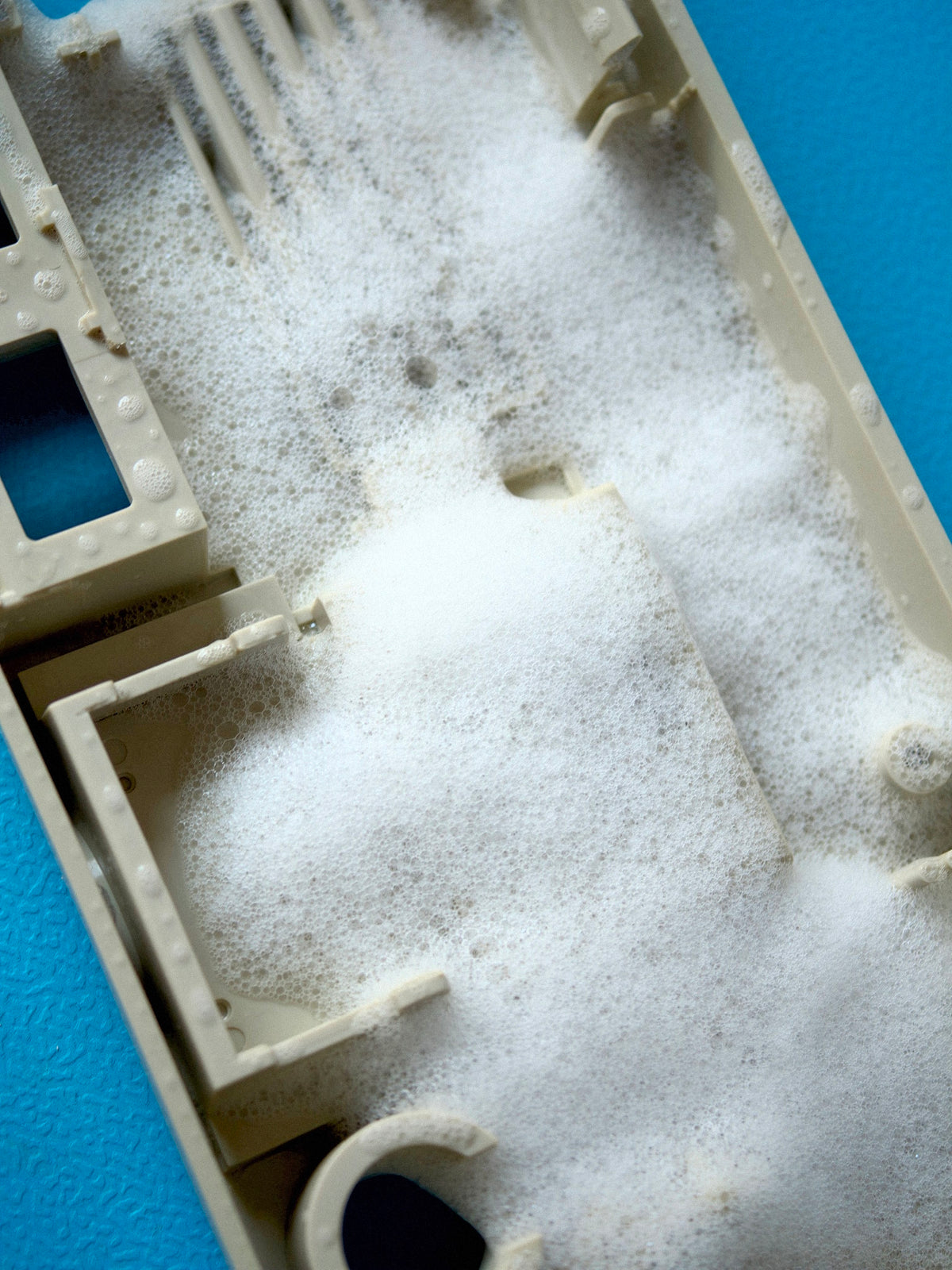

- Internally and externally cleaned of dust and dirt
- Corroded screws replaced

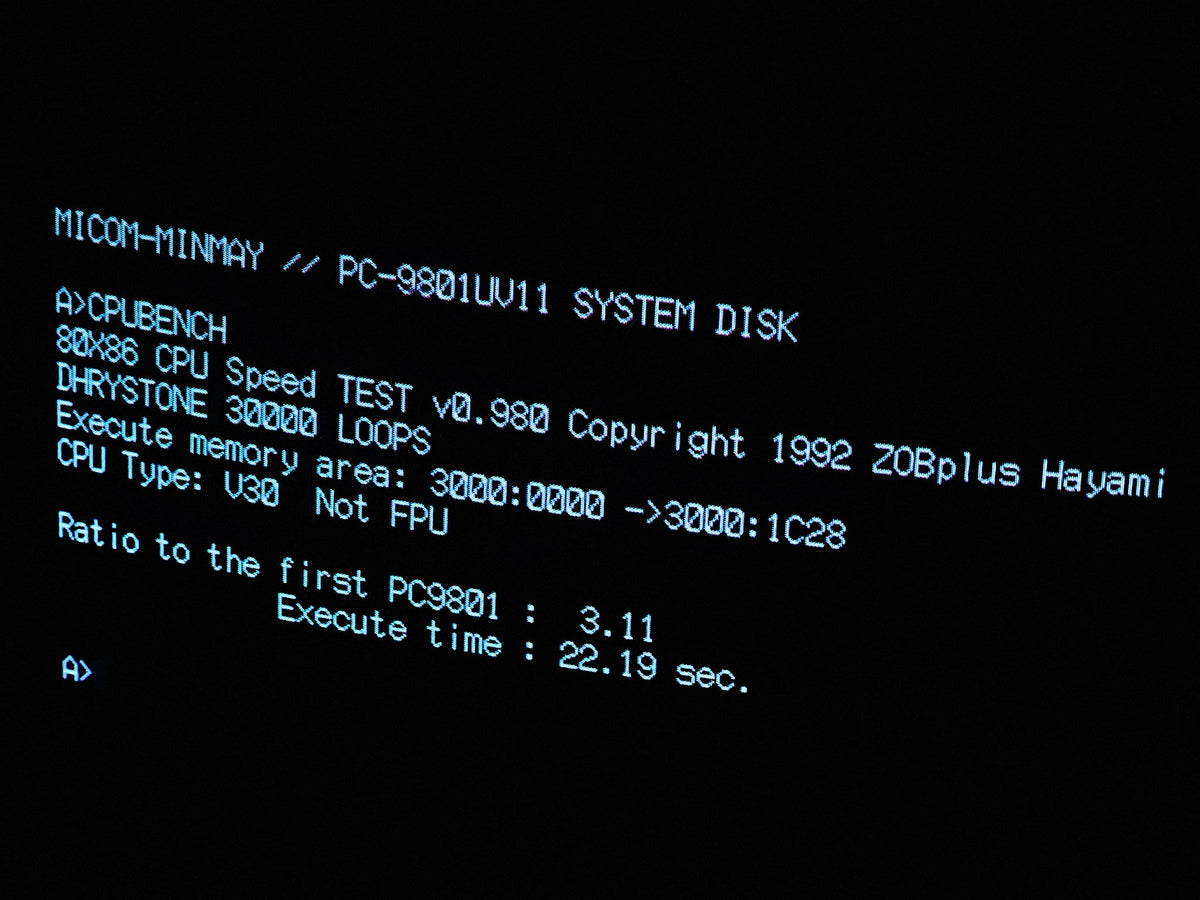

- CPU speed verified
- Onboard YM2203 FM sound tested via the internal speaker and line out port
- All ports tested and verified (except for the printer and RS-232 ports)
Specifications
CPU: 10 / 8 MHz V30
Memory: 640KB
Graphics: GRCG (Graphic Charger)
Display Output: Analog RGB, Digital RGB, B/W
Sound: Onboard YM2203
Floppy Drives: 3.5" 2HD

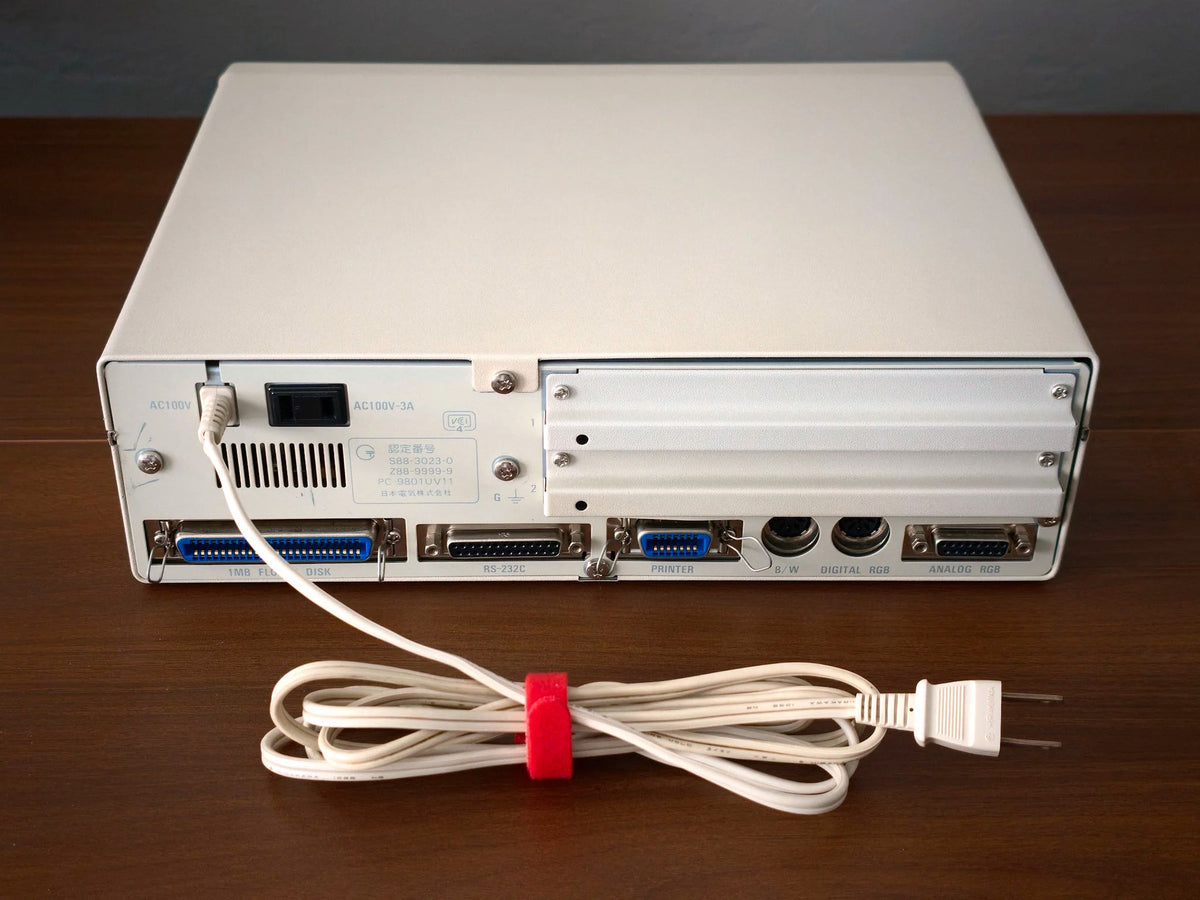

Ports: Printer, RS-232C, 1MB Floppy Disk, Audio Line Out
Model Released: 1988
Disclaimer
All units have been safely cleaned, however due to their age there are still cosmetic imperfections to the chassis such as irremovable marks and scratches.
To best preserve the historical condition and integrity of plastics, MICOM-MINMAY does not perform any retrobrighting or whitening.
While steps have been taken to provide an accurate representation, lighting affects how the tone of the unit and peripherals appear in photographs.
Pictured CRT monitor is not included.
